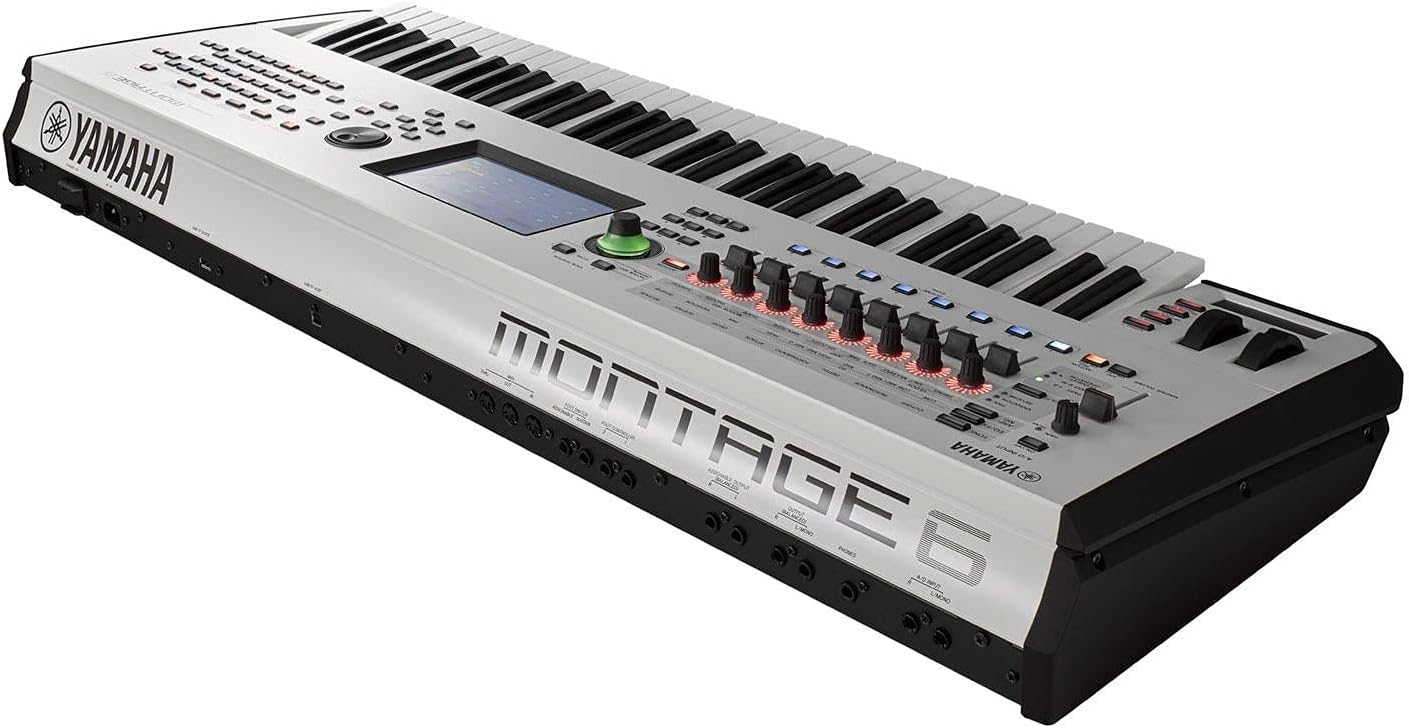

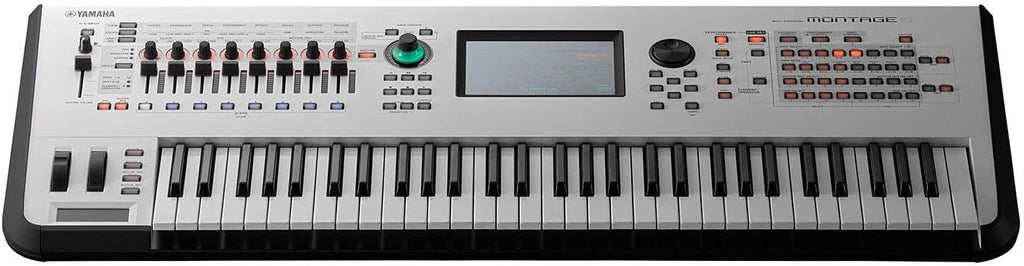

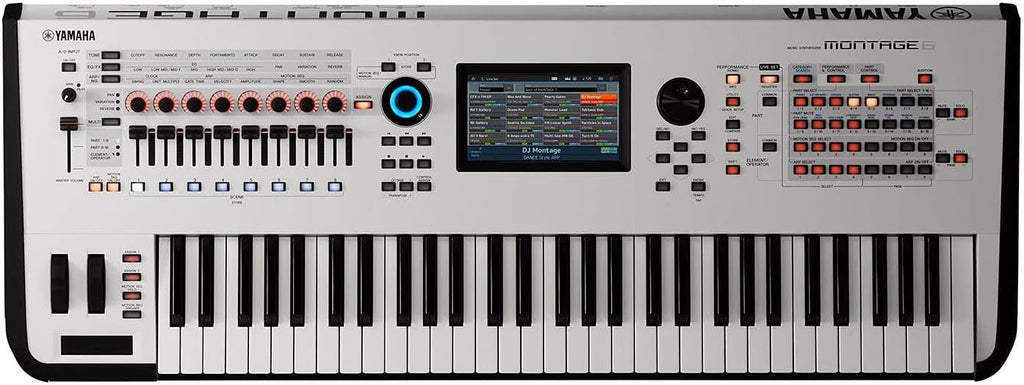

Yamaha Montage6 61-key Synthesizer Workstation - White (Certified Refurbished)

Music in Motion
From a piano keystroke to an orchestral crescendo, music is always in motion. MONTAGE introduces new ways for musicians to control sound and create expression with Motion Control. Motion Control puts rhythmic and multidimensional control at the musician’s fingertips, allowing for sound that ranges from radical to sublime.

Super Knob

Create dynamic sound changes from radical to sublime with the Super Knob. The Super Knob can control multiple parameters simultaneously, enabling any sound imaginable. You can shift your listening position from the front of an instrument to the back of a concert hall or radically alter a performance’s character from soft and ambient to rhythmic and edgy. The Super Knob can even be assigned to a second FC7 foot controller, allowing you to manipulate sound while playing with both hands.

USB Audio/MIDI Connection

Connect MONTAGE to your computer using a single USB cable and capture every nuance of your creativity in your DAW. MONTAGE features a powerful USB driver capable of sending and receiving 16 and 3 channels of 24-bit/44.1 kHz digital stereo audio to and from your computer or iOS device. MONTAGE is also class-compliant, requiring no additional hardware. The USB connection provides full 16-channel MIDI support. MONTAGE supports sample rates up to 192 kHz.

Cubase AI

MONTAGE comes with Cubase AI, Steinberg’s professional music production application, offering integrated recording and editing. Cubase AI is a special, compact version that uses the same core technologies as Cubase Pro—available exclusively for select Steinberg and Yamaha products. It provides all the essential tools for recording, editing, and mixing, from the initial idea to the final masterpiece. Cubase AI is the perfect entry into computer-based music production, offering powerful and easy-to-use software tools for all genres.

Features

• Motion Control is a highly customizable synthesizer engine control matrix.

• The Super Knob simultaneously controls multiple parameters for highly expressive sound interaction.

• Motion Sequences are tempo-synchronized control sequences that create rhythmic sound changes.

• The Envelope Follower allows audio control over internal or external synthesizer parameters.

• AWM2 ensures data compression without sacrificing sound quality.

• 256-note total polyphony: 128 stereo AWM2 + 128 FM-X voices.

• Flash memory enables you to integrate custom samples as well as YamahaSynth.com’s synthesizer libraries.

• FM-X offers 8-operator FM synthesis capable of producing incredible dynamic sounds.

• Cubase AI download included.

Technical Specifications

Keyboard

• Number of keys: 61

• Type: FSX keyboard

• Initial Touch: Yes

• Aftertouch: Yes

Tone Generator

• Tone Generator: Motion Control Synthesis Engine

  • AWM2: 8 elements

  • FM-X: 8 operators, 88 algorithms

• Maximum Polyphony:

  • AWM2: 128 (stereo/mono waveforms)

  • FM-X: 128

• Multi-Timbral Capability: 16 parts (internal), audio input parts (A/D, USB)

• Sampling:

  • Preset: 5.67 GB (converted to 16-bit linear format)

  • User: 1.75 GB

• Filters: 18 types

• Effects:

  • Reverb: 12 types

  • Variation: 88 types

  • Insertion (A, B): 88 types

  • Master Effect: 26 types

  • A/D part insertion: 83 types

  • Master EQ: 5-band

  • 1st part EQ: 3-band

  • 2nd part EQ: 2-band

Performance Recorder

• Tracks: 16 sequence tracks, tempo track, scene track

• Recording Type: Real-time replace, real-time overdub, real-time punch in/out

• Note Resolution: 480 ppq (parts per quarter note)

• Tempo (BPM): 5 - 300

• Arpeggio:

  • Parts: Up to 8 simultaneous parts

  • Presets: 10,239 types

  • User: 256 types

• Sequence Formats: MONTAGE original format, SMF 0, 1

Sequencer

• Patterns: 128

• Pattern Tracks: 16 sequence tracks

• Pattern Recording Type: Real-time replace, real-time overdub

• Songs: 128

• Song Tracks: 16 sequence tracks, tempo track, scene track

• Song Recording Type: Real-time replace, real-time overdub, real-time punch in/out

USB Audio Interface

• Sample Rate = 44.1 kHz

  • Input: 6 channels (3 stereo channels)

  • Output: 32 channels (16 stereo channels)

• Sample Rate = 44.1 kHz - 96 kHz

  • Input: 6 channels (3 stereo channels)

  • Output: 8 channels (4 stereo channels)

Other

• Controllers: Master Volume, A/D Input Gain Knob, Pitch Bend Wheel, Modulation Wheel, Ribbon Controller, Control Sliders x 8, Buttons x 8, Super Knob, Data Dial

• Display: 7" TFT color touchscreen LCD

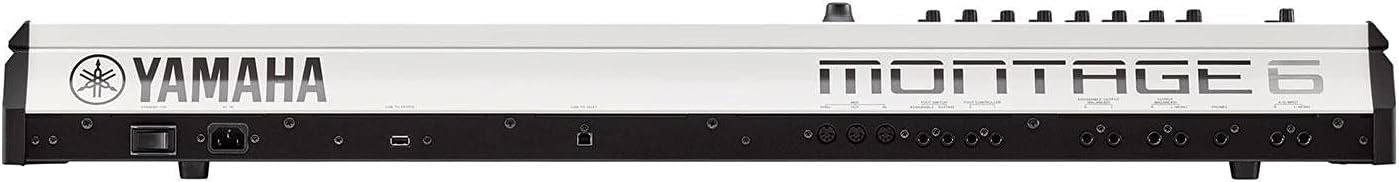

• Connectors:

  • USB TO DEVICE

  • USB TO HOST

  • MIDI IN/OUT/THRU

  • FOOT CONTROLLER 1/2

  • FOOT CONTROLLER (ASSIGNABLE/SUSTAIN)

  • OUTPUT (BALANCED) L/MONO/R (6.3 mm TRS balanced jacks)

  • ASSIGNABLE OUTPUT (BALANCED) L/R (6.3 mm TRS balanced jacks)

  • PHONES (6.3 mm standard stereo phone jack)

  • A/D INPUT L/MONO/R (6.3 mm standard phone jacks)

• Power Consumption: 27 W

• Accessories: AC power cord, Owner’s Manual, Cubase AI download information

Live Sets

• Preset: 128+

• User: 2,048

Physical Specifications

• Dimensions: 103.7 x 39.6 x 13.1 cm (40.8" x 15.6" x 5.2")

• Weight: 15 kg (33.1 lbs)
